Model: 2600535
Condition: Brand new retail packaged

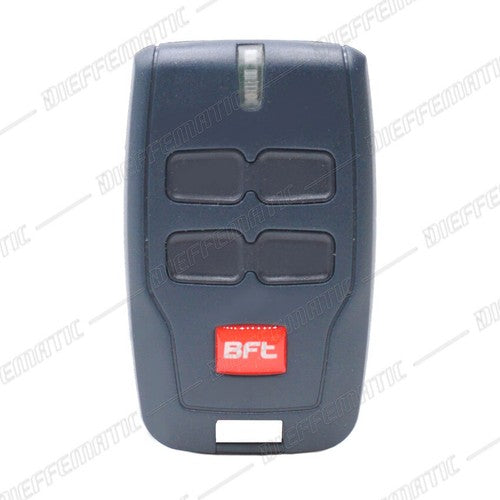

Remote Control Original Transmitter MITTO B RCB04 R1 4 CH D111906
1659080509475-698
BFT-2600535
Remote control for gate automation original BFT MITTO B RCB D111906
EAN 8027908410139
4-channel model
Frequency of use 433.92 Mhz
Security rolling code system to avoid cloning from parts of other non-original transmitters.
The duplication procedure shall be carried out in close proximity to the recipient.
1. Press simultaneously the buttons 1 and 2 of the source remote control for a few seconds (until the LED lights up)
2. Press the button on the source remote control
3. Within 10 seconds press simultaneously for a few seconds (until the LED lights up) the buttons 1 and 2 of the new remote control (to be programmed)
4. Press the new remote control button (to be programmed) to complete the learning.
Wait at least 10 seconds and try to operate the gate opening with the remote control just programmed.
To duplicate other remote controls, repeat the operation starting from step 1.
If the procedure is not successful or if mistakes are made during programming
Wait 20 seconds and restart the programming operation from step 1.
NOTES:
in the old versions of the Mitto 2 and Mitto 4 there is the hidden key.
In this case the pressing of the first two keys is replaced by pressing the hidden key
